Time interpolation using nowcasting
Sometimes, you need reflectivity or precipitation-rates at moments in time that do not match exactly with the time at which observational data is available. Simple linear interpolation between two fields at different times will not do a goot job because of precipitation displacement.
As a solution to this, the module obs_process provides a nowcast interpolation functionality. The basic idea is that data at intermediate timesteps, data is estimated as a weighted average of the forward advection of the observations before and backward advection of the observations after.
Interpolate a batch of observations
This section demonstrates the processing of a batch of observations in one call to the obs_process function. The results are then displayed in the form of a short animation.
Lets start with the required imports and directory setup:
import os
import datetime
import subprocess
import glob
import shutil
import numpy as np
import matplotlib as mpl
import matplotlib.pyplot as plt
import cartopy.crs as ccrs
import cartopy.feature as cfeature
import domutils.legs as legs
import domutils.geo_tools as geo_tools
import domutils.radar_tools as radar_tools
import domcmc.fst_tools as fst_tools
import domutils._py_tools as py_tools
#setting up directories
test_data_dir = setup_test_paths['test_data_dir']
test_results_dir = setup_test_paths['test_results_dir']
generated_files_dir = os.path.join(test_results_dir, 'generated_files', 'test_radar_time_interpolation')
generated_figure_dir = os.path.join(test_results_dir, 'generated_figures', 'test_radar_time_interpolation')
reference_figure_dir = os.path.join(test_data_dir, 'reference_figures', 'test_radar_time_interpolation')
py_tools.parallel_mkdir(generated_files_dir)
py_tools.parallel_mkdir(generated_figure_dir)
# matplotlib global settings
dpi = 400
mpl.rcParams.update({
'font.family': 'Latin Modern Roman',
'font.size': 32,
'axes.titlesize': 32,
'axes.labelsize': 32,
'xtick.labelsize': 25,
'ytick.labelsize': 25,
'legend.fontsize': 25,
'figure.dpi': dpi,
'savefig.dpi': dpi,
})
obs_process is a python script callable from the shell such as:
#process data with time interpolation python -m domutils.radar_tools.obs_process \ --input_t0 202206150800 \ --input_tf 202206160000 \ --input_dt 10 \ --output_t0 202206150900 \ --output_tf 202206160000 \ --output_dt 1 \ --t_interp_method 'nowcast' \ ...
However, for this example we will be running directly from Python with arguments provided by the attributes of a simple object.
# a class that mimics the output of argparse
class ArgsClass():
input_t0 = '202205212050'
input_tf = '202205212140'
input_dt = '10M'
output_t0 = '202205212110'
output_tf = '202205212140'
output_dt = '1M'
interp_max_dt = 'None'
output_file_format = 'fst'
complete_dataset = 'False'
t_interp_method = 'nowcast'
input_data_dir = os.path.join(test_data_dir, 'odimh5_radar_composites')
input_file_struc = '%Y/%m/%d/qcomp_%Y%m%d%H%M.h5'
h5_latlon_file = os.path.join(test_data_dir, 'radar_continental_2.5km_2882x2032.pickle')
sample_pr_file = os.path.join(test_data_dir, 'hrdps_5p1_prp0.fst')
ncores = 40 # use as many cpus as you have on your system
preproc_median_filt = '3'
nowcast_median_filt = '3'
output_dir = os.path.join(generated_files_dir, 'obs_process_t_interp')
output_file_struc = '%Y%m%d%H%M.fst'
log_level = 'WARNING'
The processing of observations and time interpolation is done in one simple function call.
# all the arguments are attributes of the args object
args = ArgsClass()
# observations are processed here
# the output are files in different directories
radar_tools.obs_process(args)
To make an animation showing the time-interpolated dat, we first define a function for plotting each individual panels.
def plot_panel(data,
fig, ax_pos, title,
proj_aea,
proj_obj, colormap,
plot_palette=None,
pal_units=None,
show_artefacts=False):
ax = fig.add_axes(ax_pos, projection=proj_aea)
ax.set_extent(proj_obj.rotated_extent, crs=proj_aea)
dum = ax.annotate(title, size=32,
xy=(.022, .85), xycoords='axes fraction',
bbox=dict(boxstyle="round", fc='white', ec='white'))
# projection from data space to image space
projected_data = proj_obj.project_data(data)
# plot data & palette
colormap.plot_data(ax=ax, data=projected_data,
palette=plot_palette,
pal_units=pal_units, pal_format='{:5.1f}',
equal_legs=True)
# add political boundaries
ax.add_feature(cfeature.STATES.with_scale('10m'), linewidth=0.5, edgecolor='0.2')
# show artefacts in accumulation plots
if show_artefacts:
ax2 = fig.add_axes(ax_pos)
ax2.set_xlim((0.,1.))
ax2.set_ylim((0.,1.))
ax2.patch.set_alpha(0.0)
ax2.set_axis_off()
for x0, y0, dx in [(.17,.75,.1), (.26,.79,.1), (.36,.83,.1)]:
ax2.arrow(x0, y0, dx, -.03,
width=0.015, facecolor='red', edgecolor='black',
head_width=3*0.01, linewidth=2.)
We now setup the general characteristics of the figure being generated. See Legs Tutorial for information on the definition of color mapping objects.
#pixel density of each panel
ratio = 1.
hpix = 600. #number of horizontal pixels
vpix = ratio*hpix #number of vertical pixels
img_res = (int(hpix),int(vpix))
#size of image to plot
fig_w = 19. #size of figure
fig_h = 15.7 #size of figure
rec_w = 7./fig_w #size of axes
rec_h = ratio*(rec_w*fig_w)/fig_h #size of axes
sp_w = .5/fig_w #space between panel and border
sp_m = 2.2/fig_w #space between panels
sp_h = .5/fig_h #space between panels
# color mapping object
range_arr = [.1,1.,5.,10.,25.,50.,100.]
missing = -9999.
# colormap object for precip rates
pr_colormap = legs.PalObj(range_arr=range_arr,
n_col=6,
over_high='extend', under_low='white',
excep_val=missing,
excep_col='grey_200')
# colormap for QI index
pastel = [ [[255,190,187],[230,104, 96]], #pale/dark red
[[255,185,255],[147, 78,172]], #pale/dark purple
[[255,227,215],[205,144, 73]], #pale/dark brown
[[210,235,255],[ 58,134,237]], #pale/dark blue
[[223,255,232],[ 61,189, 63]] ] #pale/dark green
qi_colormap = legs.PalObj(range_arr=[0., 1.],
dark_pos='high',
color_arr=pastel,
excep_val=[missing,0.],
excep_col=['grey_220','white'])
#setup cartopy projection
##250km around Blainville radar
pole_latitude=90.
pole_longitude=0.
lat_0 = 46.
delta_lat = 2.18/2.
lon_0 = -73.75
delta_lon = 3.12/2.
map_extent=[lon_0-delta_lon, lon_0+delta_lon, lat_0-delta_lat, lat_0+delta_lat]
proj_aea = ccrs.RotatedPole(pole_latitude=pole_latitude, pole_longitude=pole_longitude)
# get lat/lon of input data from one of the h5 files
dum_h5_file = os.path.join(test_data_dir, 'odimh5_radar_composites', '2022/05/21/qcomp_202205212100.h5')
input_ll = radar_tools.read_h5_composite(dum_h5_file, latlon=True)
input_lats = input_ll['latitudes']
input_lons = input_ll['longitudes']
# get lat/lon of output data
output_ll = fst_tools.get_data(args.sample_pr_file, var_name='PR', latlon=True)
output_lats = output_ll['lat']
output_lons = output_ll['lon']
# instantiate projection object for input data
input_proj_obj = geo_tools.ProjInds(src_lon=input_lons, src_lat=input_lats,
extent=map_extent, dest_crs=proj_aea, image_res=img_res)
# instantiate projection object for output data
output_proj_obj = geo_tools.ProjInds(src_lon=output_lons, src_lat=output_lats,
extent=map_extent, dest_crs=proj_aea, image_res=img_res)
Now, we make individual frames of the animation.
this_frame = 1
t0 = datetime.datetime(2022,5,21,21,10)
source_deltat = [0, 10, 20] # minutes
interpolated_deltat = np.arange(10) # minutes
for src_dt in source_deltat:
source_t_offset = datetime.timedelta(seconds=src_dt*60.)
source_valid_time = t0 + source_t_offset
for interpolated_dt in interpolated_deltat:
interpolated_t_offset = datetime.timedelta(seconds=interpolated_dt*60.)
interpolated_valid_time = (t0 + source_t_offset) + interpolated_t_offset
# instantiate figure
fig = plt.figure(figsize=(fig_w,fig_h))
# source data on original grid
dat_dict = radar_tools.get_instantaneous(desired_quantity='precip_rate',
valid_date=source_valid_time,
data_path=args.input_data_dir,
data_recipe=args.input_file_struc)
x0 = sp_w + rec_w + sp_m
y0 = 2.*sp_h + rec_h
ax_pos = [x0, y0, rec_w, rec_h]
title = f'Source data \n @ t0+{src_dt}minutes'
plot_panel(dat_dict['precip_rate'],
fig, ax_pos, title,
proj_aea,
input_proj_obj, pr_colormap,
plot_palette='right',
pal_units='mm/h')
# processed data on destination grid
dat_dict = radar_tools.get_instantaneous(desired_quantity='precip_rate',
valid_date=source_valid_time,
data_path=os.path.join(args.output_dir, 'processed'),
data_recipe=args.output_file_struc)
x0 = sp_w + rec_w + sp_m
y0 = sp_h
ax_pos = [x0, y0, rec_w, rec_h]
title = f'Processed data \n @ t0+{src_dt}minutes'
plot_panel(dat_dict['precip_rate'],
fig, ax_pos, title,
proj_aea,
output_proj_obj, pr_colormap,
plot_palette='right',
pal_units='mm/h')
# Time interpolated data
dat_dict = radar_tools.get_instantaneous(desired_quantity='precip_rate',
valid_date=interpolated_valid_time,
data_path=args.output_dir,
data_recipe=args.output_file_struc)
x0 = sp_w
y0 = sp_h
ax_pos = [x0, y0, rec_w, rec_h]
title = f'Interpolated \n @ t0+{src_dt+interpolated_dt}minutes'
plot_panel(dat_dict['precip_rate'],
fig, ax_pos, title,
proj_aea,
output_proj_obj, pr_colormap)
# quality index is also interpolated using nowcasting
x0 = sp_w
y0 = 2.*sp_h + rec_h
ax_pos = [x0, y0, rec_w, rec_h]
title = f'Quality Ind Interpolated \n @ t0+{src_dt+interpolated_dt}minutes'
plot_panel(dat_dict['total_quality_index'],
fig, ax_pos, title,
proj_aea,
output_proj_obj, qi_colormap,
plot_palette='right',
pal_units='[unitless]')
# save output
fig_name = os.path.join(generated_figure_dir, f'{this_frame:02}_time_interpol_demo_plain.png')
plt.savefig(fig_name)
plt.close(fig)
print(f'done with {fig_name}')
# use "convert" to make a gif out of the png
cmd = ['convert', fig_name, '-geometry', '15%', '-quantize', 'transparent', '-dither', 'FloydSteinberg', '-colors', '256', fig_name.replace('png', 'gif')]
process = subprocess.Popen(cmd, stdout=subprocess.PIPE)
output, error = process.communicate()
# we don't need the original png anymore
os.remove(fig_name)
this_frame += 1

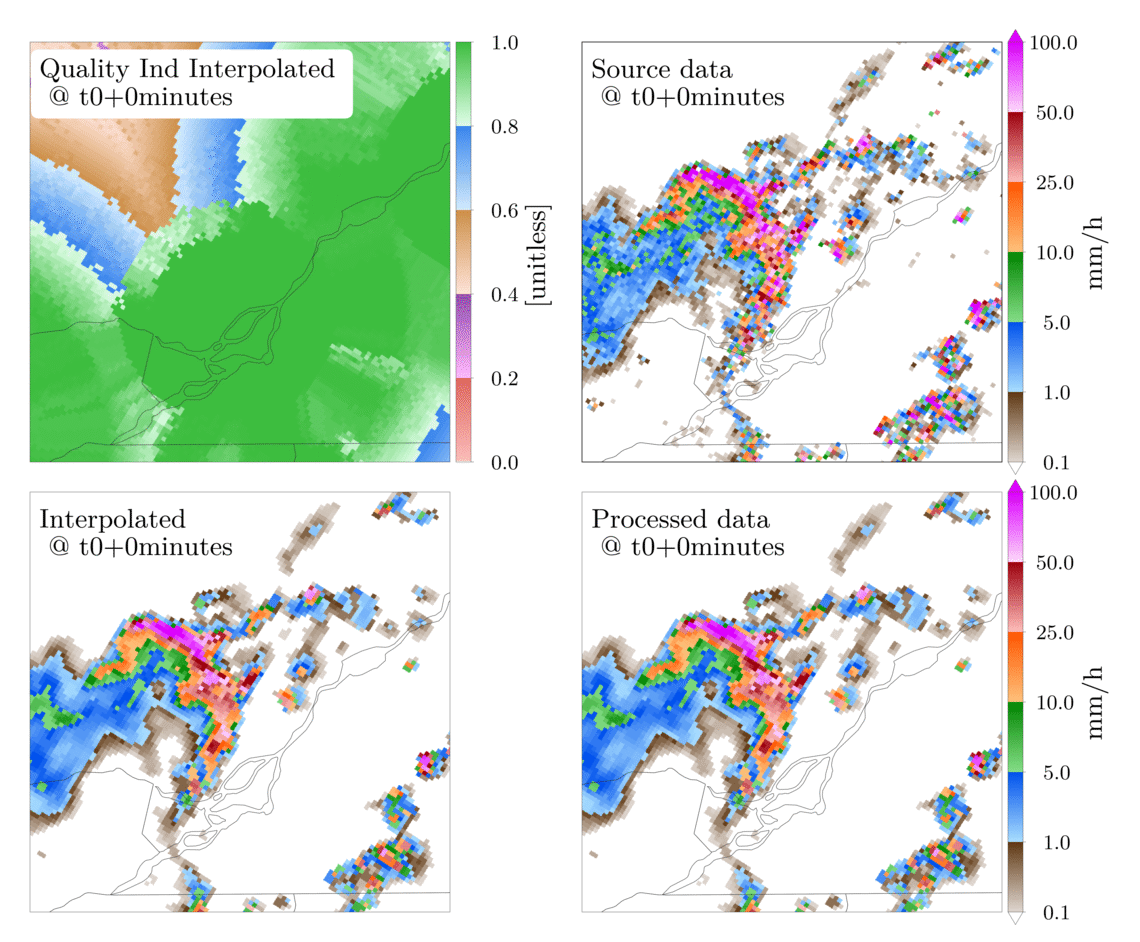

Finally, an animated gif is constructed from the frames we just made,
this_frame = 1
t0 = datetime.datetime(2022,5,21,21,10)
source_deltat = [0, 10, 20] # minutes
interpolated_deltat = np.arange(10) # minutes
for src_dt in source_deltat:
source_t_offset = datetime.timedelta(seconds=src_dt*60.)
source_valid_time = t0 + source_t_offset
for interpolated_dt in interpolated_deltat:
interpolated_t_offset = datetime.timedelta(seconds=interpolated_dt*60.)
interpolated_valid_time = (t0 + source_t_offset) + interpolated_t_offset
# instantiate figure
fig = plt.figure(figsize=(fig_w,fig_h))
# source data on original grid
dat_dict = radar_tools.get_instantaneous(desired_quantity='precip_rate',
valid_date=source_valid_time,
data_path=args.input_data_dir,
data_recipe=args.input_file_struc)
x0 = sp_w + rec_w + sp_m
y0 = 2.*sp_h + rec_h
ax_pos = [x0, y0, rec_w, rec_h]
title = f'Source data \n @ t0+{src_dt}minutes'
plot_panel(dat_dict['precip_rate'],
fig, ax_pos, title,
proj_aea,
input_proj_obj, pr_colormap,
plot_palette='right',
pal_units='mm/h')
# processed data on destination grid
dat_dict = radar_tools.get_instantaneous(desired_quantity='precip_rate',
valid_date=source_valid_time,
data_path=os.path.join(args.output_dir, 'processed'),
data_recipe=args.output_file_struc)
x0 = sp_w + rec_w + sp_m
y0 = sp_h
ax_pos = [x0, y0, rec_w, rec_h]
title = f'Processed data \n @ t0+{src_dt}minutes'
plot_panel(dat_dict['precip_rate'],
fig, ax_pos, title,
proj_aea,
output_proj_obj, pr_colormap,
plot_palette='right',
pal_units='mm/h')
# Time interpolated data
dat_dict = radar_tools.get_instantaneous(desired_quantity='precip_rate',
valid_date=interpolated_valid_time,
data_path=args.output_dir,
data_recipe=args.output_file_struc)
x0 = sp_w
y0 = sp_h
ax_pos = [x0, y0, rec_w, rec_h]
title = f'Interpolated \n @ t0+{src_dt+interpolated_dt}minutes'
plot_panel(dat_dict['precip_rate'],
fig, ax_pos, title,
proj_aea,
output_proj_obj, pr_colormap)
# quality index is also interpolated using nowcasting
x0 = sp_w
y0 = 2.*sp_h + rec_h
ax_pos = [x0, y0, rec_w, rec_h]
title = f'Quality Ind Interpolated \n @ t0+{src_dt+interpolated_dt}minutes'
plot_panel(dat_dict['total_quality_index'],
fig, ax_pos, title,
proj_aea,
output_proj_obj, qi_colormap,
plot_palette='right',
pal_units='[unitless]')
# save output
fig_name = os.path.join(generated_figure_dir, f'{this_frame:02}_time_interpol_demo_plain.png')
plt.savefig(fig_name)
plt.close(fig)
print(f'done with {fig_name}')
# use "convert" to make a gif out of the png
cmd = ['convert', fig_name, '-geometry', '15%', '-quantize', 'transparent', '-dither', 'FloydSteinberg', '-colors', '256', fig_name.replace('png', 'gif')]
process = subprocess.Popen(cmd, stdout=subprocess.PIPE)
output, error = process.communicate()
# we don't need the original png anymore
os.remove(fig_name)
this_frame += 1
Accumulations from time interpolated data
Using nowcasting for time interpolation can be advantageous when computing accumulations from source data available at discrete times. In the example below, we compare accumulations obtained from the source data to accumulations obtained from the time interpolated data.
end_date = datetime.datetime(2022,5,21,21,40, tzinfo=datetime.timezone.utc)
duration = 30 # minutes
# instantiate figure
fig = plt.figure(figsize=(fig_w,fig_h))
# make accumulation from source data
dat_dict = radar_tools.get_accumulation(end_date=end_date,
duration=duration,
input_dt=10., # minutes
data_path=args.input_data_dir,
data_recipe=args.input_file_struc)
x0 = 2.*sp_w + rec_w
y0 = 2.*sp_h + rec_h
ax_pos = [x0, y0, rec_w, rec_h]
title = 'Accumulation from \n source data'
plot_panel(dat_dict['accumulation'],
fig, ax_pos, title,
proj_aea,
input_proj_obj, pr_colormap,
plot_palette='right',
pal_units='mm',
show_artefacts=True)
# make accumulation from processed data
dat_dict = radar_tools.get_accumulation(end_date=end_date,
duration=duration,
input_dt=10., # minutes
data_path=os.path.join(args.output_dir, 'processed'),
data_recipe=args.output_file_struc)
x0 = 2.*sp_w + rec_w
y0 = sp_h
ax_pos = [x0, y0, rec_w, rec_h]
title = 'Accumulation from \n processed data'
plot_panel(dat_dict['accumulation'],
fig, ax_pos, title,
proj_aea,
output_proj_obj, pr_colormap,
plot_palette='right',
pal_units='mm',
show_artefacts=True)
# make accumulation from time interpolated data
dat_dict = radar_tools.get_accumulation(end_date=end_date,
duration=duration,
input_dt=1., # minutes
data_path=args.output_dir,
data_recipe=args.output_file_struc)
x0 = sp_w
y0 = sp_h
ax_pos = [x0, y0, rec_w, rec_h]
title = 'Accumulation from \n time interpolated data'
plot_panel(dat_dict['accumulation'],
fig, ax_pos, title,
proj_aea,
output_proj_obj, pr_colormap)
# save output
fig_name = os.path.join(generated_figure_dir, 'time_interpol_demo_accum_plain.svg')
plt.savefig(fig_name)
plt.close(fig)
The figure below shows 30 minutes precipitation accumulation computed from:
The source data every 10 minutes
The filtered data every 10 minutes
The time interpolated data every 1 minute
In the two panels on the right, the red arrows indicate artefacts that originate from the poor time resolution of the source data compared to the speed at which the bow echo propagates.
The accumulation on the left is constructed from the time-interpolated values every minute and does not display the displacement artefacts.
